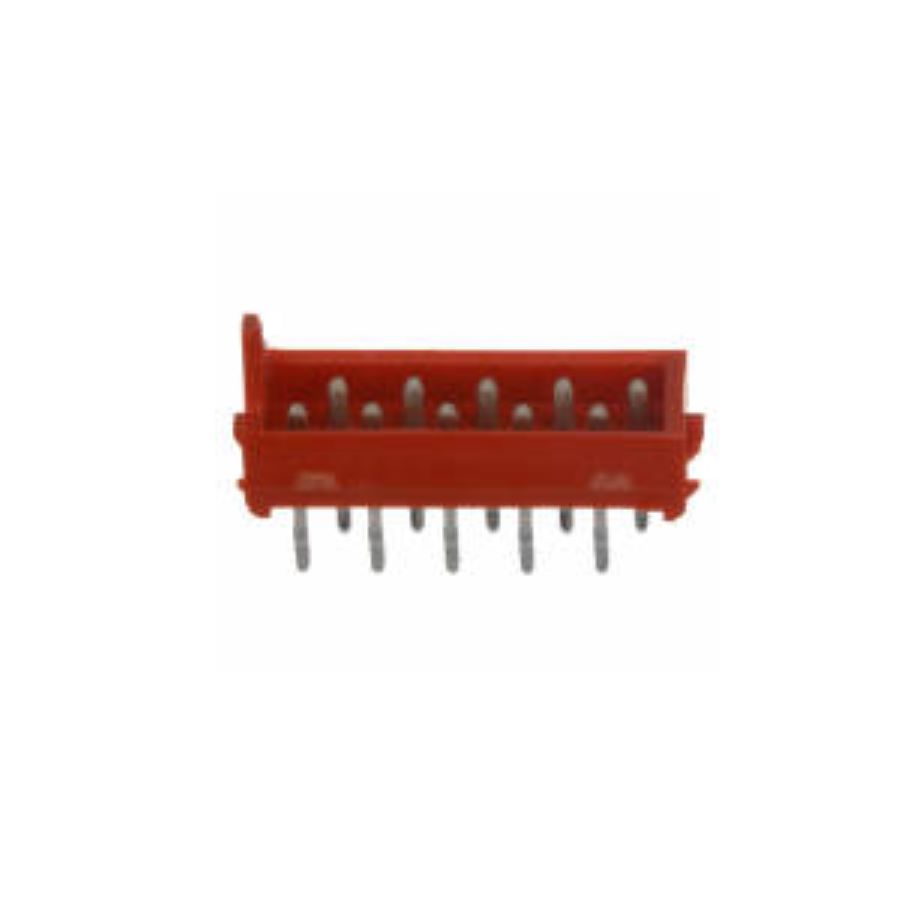

8-215464-0
Manufacturer:
TE Connectivity
Mfr.Part #:
8-215464-0
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| RoHS | Compliant |
| Contact Plating | Tin, Tin over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Active |
| Color | Red |
| Gender | Male |
| Number of Contacts | 10 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | -40.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Contact Current Rating | 1.5 A |
| voltage rating ac | 230 V |
| elv compliant | Compliant |
| Housing Color | Red |
| pin pitch | 1.27 mm |
| Termination Post Length | 3.1 mm |
Stock: 837
Distributors
pcbx
pcbxUnit Price$1.16441
Ext.Price$1.16441
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.16441 | $1.16441 |
| 10 | $0.98916 | $9.89160 |
| 25 | $0.93871 | $23.46775 |
| 50 | $0.88229 | $44.11450 |
| 100 | $0.83869 | $83.86900 |
